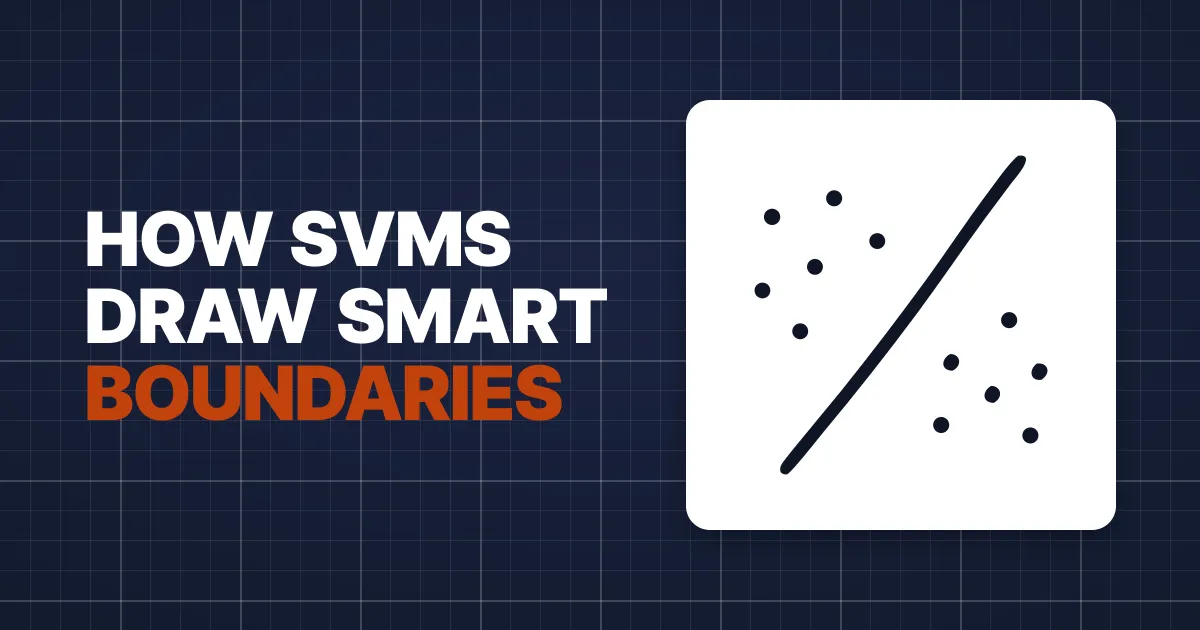

How SVMs Draw Smart Boundaries
Understand how SVMs choose maximum-margin boundaries using support vectors and how kernels enable linear, polynomial, and RBF separation.
How SVMs Draw Smart Boundaries shows how a classifier picks the widest safe split between classes. By the end, you'll know: separating boundary, margin width, and support vectors. Start with two groups of points on a flat grid. You want a rule that says which side a new point belongs on. An SVM does that by drawing one boundary line, then trying to make that line as useful as possible for future points. Why does that matter? Because the boundary is not just a line on the page. It is the decision rule. If the line sits in the right place, a new point lands on the correct side more often, whether you are separating spam from not-spam or one kind of handwritten digit from another. Now zoom in on the space around that line. What should the best boundary do? It should leave room on both sides. That room is the margin, and SVM tries to make it as wide as possible. So picture the closest training points on each side. Those points matter most, because they are the first ones to touch the margin when you move the line. They are called support vectors. If you nudge them, the boundary changes. If you move farther points, the boundary often stays the same. That gives you the key idea: SVM does not listen equally to every point. It listens hardest to the points nearest the edge. A wide margin usually means the rule is less fragile, so the model has a better chance of handling new data. So if I ask you to predict which points control the line, you should point to the closest ones, not the far ones. That is the whole mechanism. The boundary is chosen by the margin, and the margin is fixed by the support vectors. One-sentence explanation: the support vectors are the training points that sit closest to the boundary and determine where that boundary can be placed. Now apply it to a new situation: if a new point appears far from the margin, it may not change the model at all. But if a new point lands near the edge, it can force a different boundary the next time the SVM is trained. So far, we have stayed with a straight line. That works only when the two groups can be split that way. But many datasets refuse to line up neatly, and then a straight boundary misses the pattern. Imagine points arranged so that one class sits inside a ring and the other class sits around it. No single straight line can separate those groups cleanly in the original grid. The problem is not the SVM idea. The problem is the shape of the space. This is where kernels enter. A kernel lets the SVM act as if the points were moved into a new feature space where separation becomes easier. You do not have to draw that new space by hand. The method uses the relationships between points to work there indirectly. That changes the question from “Can a line split these points here?” to “Can some boundary split them after the data is viewed in a richer space?” Once you ask that version, many impossible-looking problems become manageable. So if you had to predict what kernels do, the answer is not “magically solve everything.” They change the view of the data so that a useful boundary can be found where the original view failed. One-sentence explanation: kernels let SVMs build separation in a transformed feature space when the original points are not linearly separable. And if you meet a new dataset with a curved pattern, you do not give up on SVM right away. You ask whether a kernel can make the pattern line up in a space the model can use. Now let’s take the simplest kernel first. The linear kernel keeps the data in the original space and checks similarity with the ordinary dot product. If the groups already separate with a straight boundary, this is enough. You can think of it as a direct test of alignment between points and the boundary direction. No extra curve. No hidden transformation. Just the straight-line version of the SVM idea working on data that is already simple enough. So if a problem is already close to linearly separable, the linear kernel is a clean choice. It is fast, direct, and easy to interpret because the boundary you learn is the boundary you see. Now we add one more step. The polynomial kernel lets features combine with powers and interactions. That means the model can respond not only to a single feature, but to how features work together. For example, a point might not be separable by x alone or y alone, but by x squared, y squared, or x times y, the pattern can open up. The boundary can bend because the model is effectively checking richer combinations than the original grid showed. So when the class label depends on relationships between features, a polynomial kernel can capture that structure. One-sentence explanation: it turns simple inputs into higher-order combinations so the SVM can draw a curved boundary. The RBF kernel takes a different route. It compares points by distance, so nearby points look very similar and faraway points quickly stop mattering much. That makes the boundary flexible without forcing one fixed global shape. If you place a new point close to a cluster, the model treats it as strongly related to that cluster. If you move it away, that relationship drops fast. So the boundary can wrap around groups that are locally dense and still stay separate from other groups. This is why RBF is so common. It handles complicated layouts by paying attention to local neighborhoods instead of only one straight direction. One-sentence explanation: the RBF kernel uses distance-based similarity to let SVM form very flexible decision boundaries. Now the choice matters. Different kernels give different kinds of boundaries, and the best one depends on the data in front of you. If the pattern is simple, a linear kernel may be enough. If the pattern bends, a polynomial or RBF kernel may fit better. So what should you predict before training? You should ask how complex the boundary needs to be and how much structure the data seems to have. A kernel is not selected by habit. It is selected by the shape of the problem. Apply that to a new situation: if you are classifying points that already separate cleanly, do not reach for a complicated kernel first. If the classes twist around each other, a richer kernel may be the better tool. Put the whole picture together. SVM searches for the most reliable boundary, and the margin tells it how much space that boundary leaves to the nearest points. The support vectors pin the decision in place, so the model focuses on the hardest cases near the edge. When the data is simple, a linear kernel keeps the boundary straight. When the data is more complex, kernels change the feature space so the same SVM idea can still work. The method stays the same; only the view of the data changes. So the final answer is simple: SVM is a boundary-finding method that tries to be stable, not just correct on the training points. Kernels let that same method handle both straight splits and curved patterns, depending on what the data asks for. Let's bring it all together. You've learned: best separating boundary, widest margin, support vectors; kernels reshape hard data; different kernels fit different shapes. Next time you sort a photo, a spam filter, or a simple pattern, notice that smart boundary at work. Stay curious — there's always more to discover.
