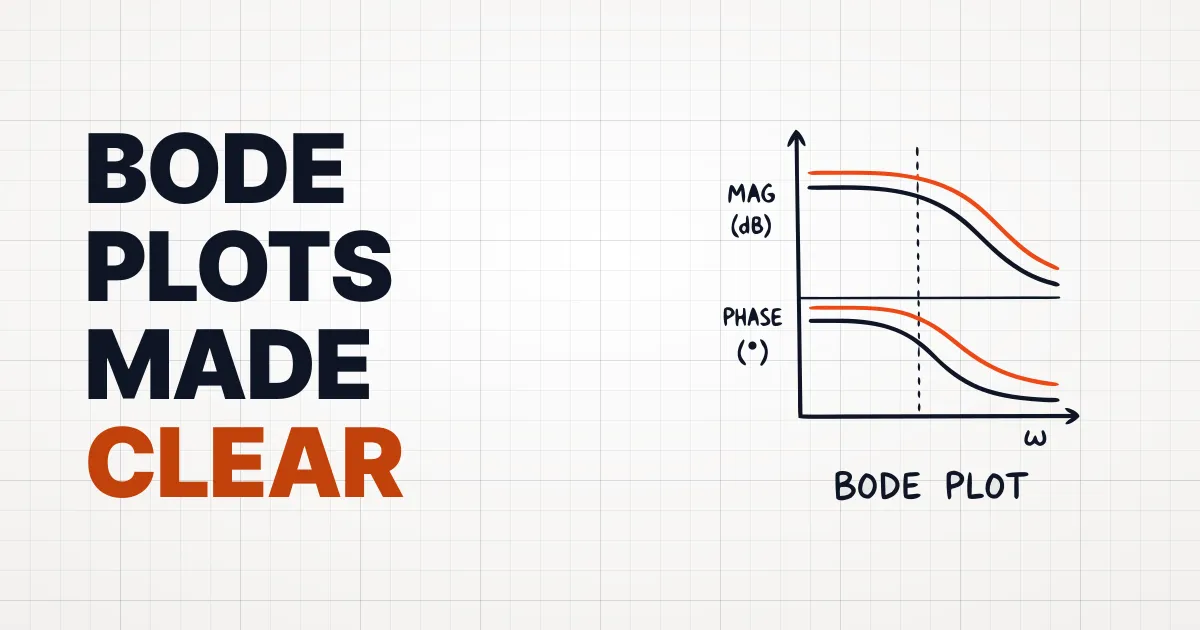

Bode Plots Made Clear
Understand how Bode plots use magnitude and phase across frequency to describe system behavior and assess feedback stability.
Bode Plots Made Clear shows how frequency response turns a system into two simple views: magnitude and phase. By the end, you'll know: what Bode plots show, how frequency response works, and how magnitude and phase describe behavior. Start with the smallest control system you can imagine: one input, one output, and a question about how it behaves when the input wiggles faster or slower. A Bode plot gives you that answer quickly, without forcing you to solve the full motion in time. That matters because different frequencies reveal different weaknesses. A system can look fine for a slow change, then struggle with a fast disturbance. So the plot helps you judge stability, speed, filtering, and robustness from one compact view. Now build the idea one step at a time. Feed the system a pure sine wave at one frequency. Watch the output. If the system is linear, the output is still a sine wave, but its size and timing may change. Try a lower frequency first. Predict what happens: for many systems, the output follows more easily. Then raise the frequency. The same system may now lag more or shrink the signal more. That pattern is the frequency response. So the key move is simple. You do not ask, “What happens to every possible signal at once?” You ask, “What happens to one sine wave, then another, then another?” Each frequency gets its own gain and its own phase shift. That is why Bode plots work. They collect those repeated tests into two curves. One curve shows size change. The other shows timing change. Together they tell you how the system behaves across the whole frequency range. If you had to guess before measuring, which would a slow sine wave expose more clearly: amplitude loss or phase lag? In many systems, the lag grows as frequency rises, and that is exactly the kind of trend frequency response makes visible. Now focus on the magnitude plot. This is the part that tells you how much each frequency is amplified or reduced. If the curve sits above zero, the system boosts that frequency. If it falls below zero, the system weakens it. The vertical axis is usually in decibels, or dB, because gain changes can span a huge range. Decibels let you compare a small change and a large change on the same scale without losing the structure of the plot. So when you read magnitude, ask one plain question: at this frequency, does the system make the signal bigger, smaller, or about the same? Then move to the next frequency and compare. That is the whole job of the magnitude curve. Now add the second curve: phase. This tells you how far the output shifts in angle relative to the input at each frequency. In plain terms, the output may arrive later than the input, and that delay grows as frequency changes. Why should you care? Because feedback uses the output to correct the input. If the phase shift becomes too large, the correction can arrive at the wrong moment. Then a helpful correction starts pushing the system the wrong way. So when you read phase, do not treat it as a side note. Ask a one-sentence question: at this frequency, is the feedback still acting in sync, or is it slipping toward trouble? That timing information is often what separates stable from unstable behavior. Now the horizontal axis changes. Bode plots use a logarithmic frequency scale because control systems often cover many decades, from very slow changes to very fast ones. A log scale keeps all of that on one page without crowding the low end. This also makes trends easier to read. Equal spacing on the axis means equal multiplicative steps in frequency, so a jump from 1 to 10 is shown the same way as 10 to 100. That makes slope changes much easier to compare. So if you look at the plot and see a curve bending over a wide range, the log scale is helping you notice the shape, not just the raw numbers. The point is to see how the system changes across decades, not just at one isolated frequency. Now we can connect the plot back to the transfer function. Poles and zeros are the features that bend the curves. A zero tends to raise the slope after its corner frequency. A pole tends to lower it after its corner frequency. That corner is the frequency where the effect starts to show clearly. Before it, the curve may look nearly flat. After it, the new slope becomes visible. So if you know where the poles and zeros are, you can predict the Bode shape before you draw it. Phase changes come along with those same features. A pole does not only change magnitude; it also adds lag. A zero does not only lift magnitude; it also adds lead. The plot is showing both effects at once. Here is the practical test: if I add one pole to a simple system, what do you predict happens to the magnitude slope and the phase? You should expect more roll-off and more lag, and that prediction is the bridge from algebra to the plotted response. Now we move to the question engineers care about most: how close is the feedback loop to instability? Bode plots answer that by showing gain margin and phase margin. These are not abstract labels; they are distances to trouble. Look at the frequency where the phase reaches the critical turning point, then check how much gain is left there. If the gain is still below the dangerous level, you have gain margin. It tells you how much extra amplification the loop can tolerate before it breaks. Do the same in the other direction. At the frequency where the gain crosses the key level, check how far the phase still is from the critical limit. That is phase margin. It tells you how much extra delay the loop can absorb before feedback starts to reinforce the error. So the prediction is simple: bigger margins usually mean a safer loop, while tiny margins mean the system is living close to the edge. The Bode plot does not just describe behavior. It gives you an early warning about whether the correction signal will stay helpful. If you had to apply this to a new loop, you would not start by asking whether it oscillates today. You would ask how much gain and delay it can still survive. That is what margins turn into: a practical measure of robustness. So what do engineers actually do with all this? They use Bode plots to shape controllers, filters, and compensators. The goal is not one perfect number. The goal is a balance: stable enough, fast enough, and strong enough against disturbances. If the loop is too slow, they adjust the frequency response so useful changes pass through sooner. If it is too noisy, they reduce unwanted high-frequency gain. If margins are too small, they reshape the plot so feedback has more room before instability. That is the full arc. You start with a sine wave, read gain and phase, connect them to poles and zeros, check margins, and then use the plot to design. So when you meet a Bode plot again, read it as a control story: what passes, what lags, and how close the loop is to the edge. So, here’s what you now know about Bode plots. You’ve learned: frequency response in two views, logarithmic frequency spacing, and poles, zeros, and corners. Next time you see a control system, notice how its behavior is already written in the bends and slopes. The world looks a little different now. That's a good thing.
